Download inlet manifold gasket dwg for CNC cutting
Download inlet manifold gasket cork tabs templates dwg for CNC cutting

To request other file formats please send an email to saabv4[at]saabv4[dot]com

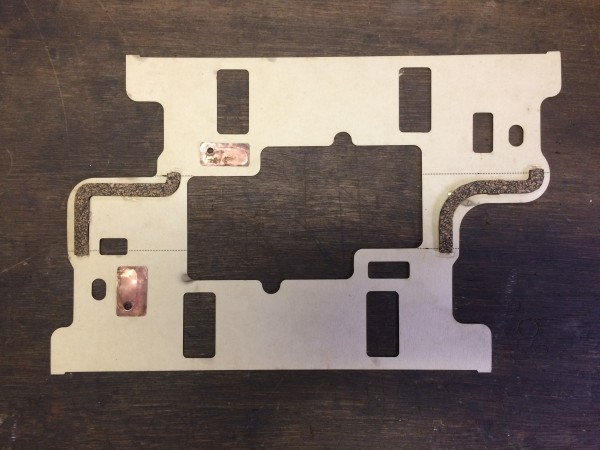

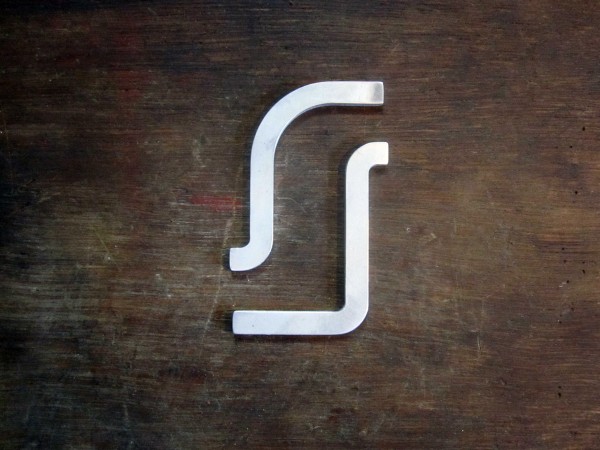

Inlet manifold gaskets can be cut from 1mm (fibre) reinforced gasket paper with a laser cutter or an oscillating knife. The cork tabs can be cut from 4mm sheet in a similar fashion or by hand using templates from laser or water jet cut aluminium or steel. Glue the tabs in place in the slots in the gasket to ensure their positioning. Please note the gasket in the photo is an early prototype made out of plain gasket paper.
