Download FoMoCo gaskets dwg for CNC cutting
Download FoMoCo gaskets pdf for A4 desktop printing and manual cutting

To request other file formats please send an email to saabv4[at]saabv4[dot]com.

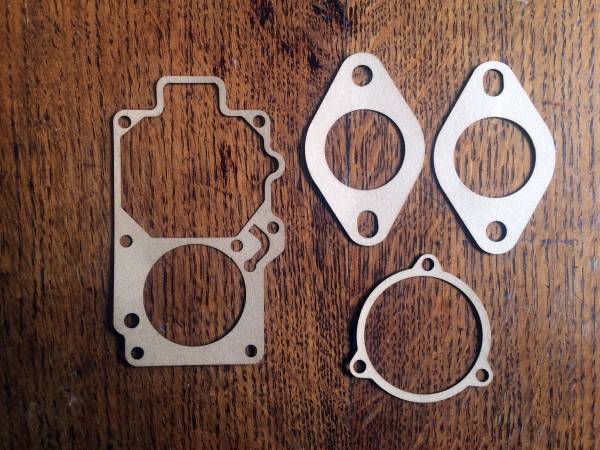

Carburettor gaskets can be cut from 0.5mm gasket paper or similar (cereal/ pizza box or manila folder and a smear of your favourite grease both sides) with a laser cutter or an oscillating knife. Check the mating surfaces on the carburettor for straightness and if needed grind them flat with valve grinding paste on a sheet of thick glass to ensure a leak free connection.
